Metforce Channel frameless glass balustrade with aluminium base shoe and stainless steel handrail, Perth

C3 to C5

Metforce channel

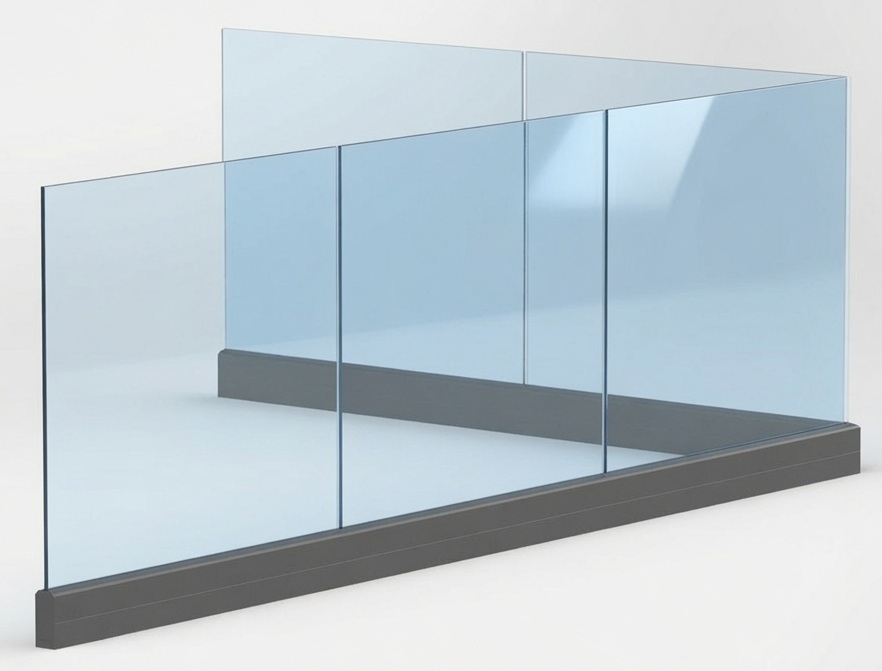

Aluminium base shoe, glass with (or without) handrail

Balustrade, Stairs & Voids

Need this for your project?

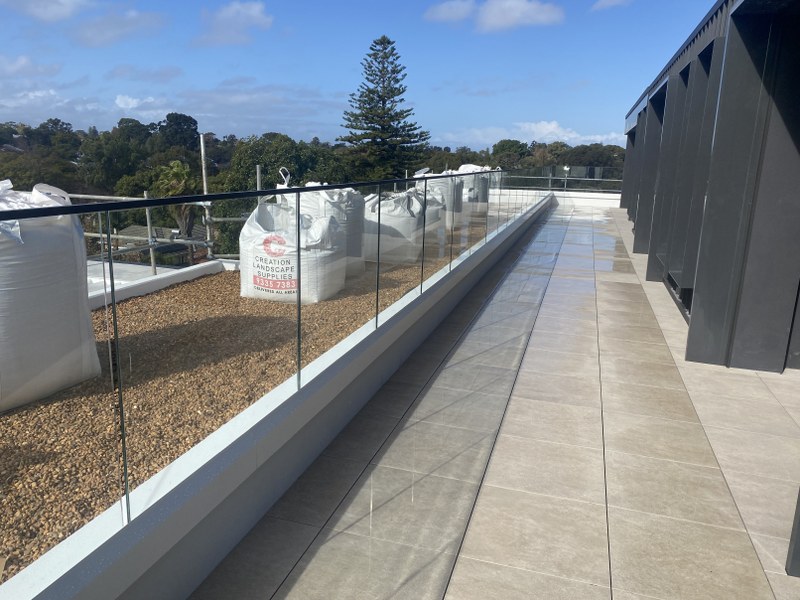

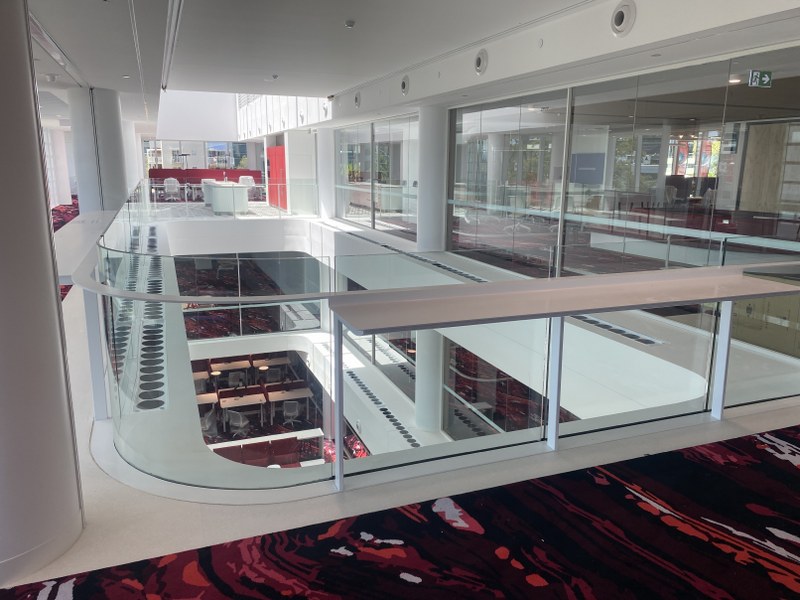

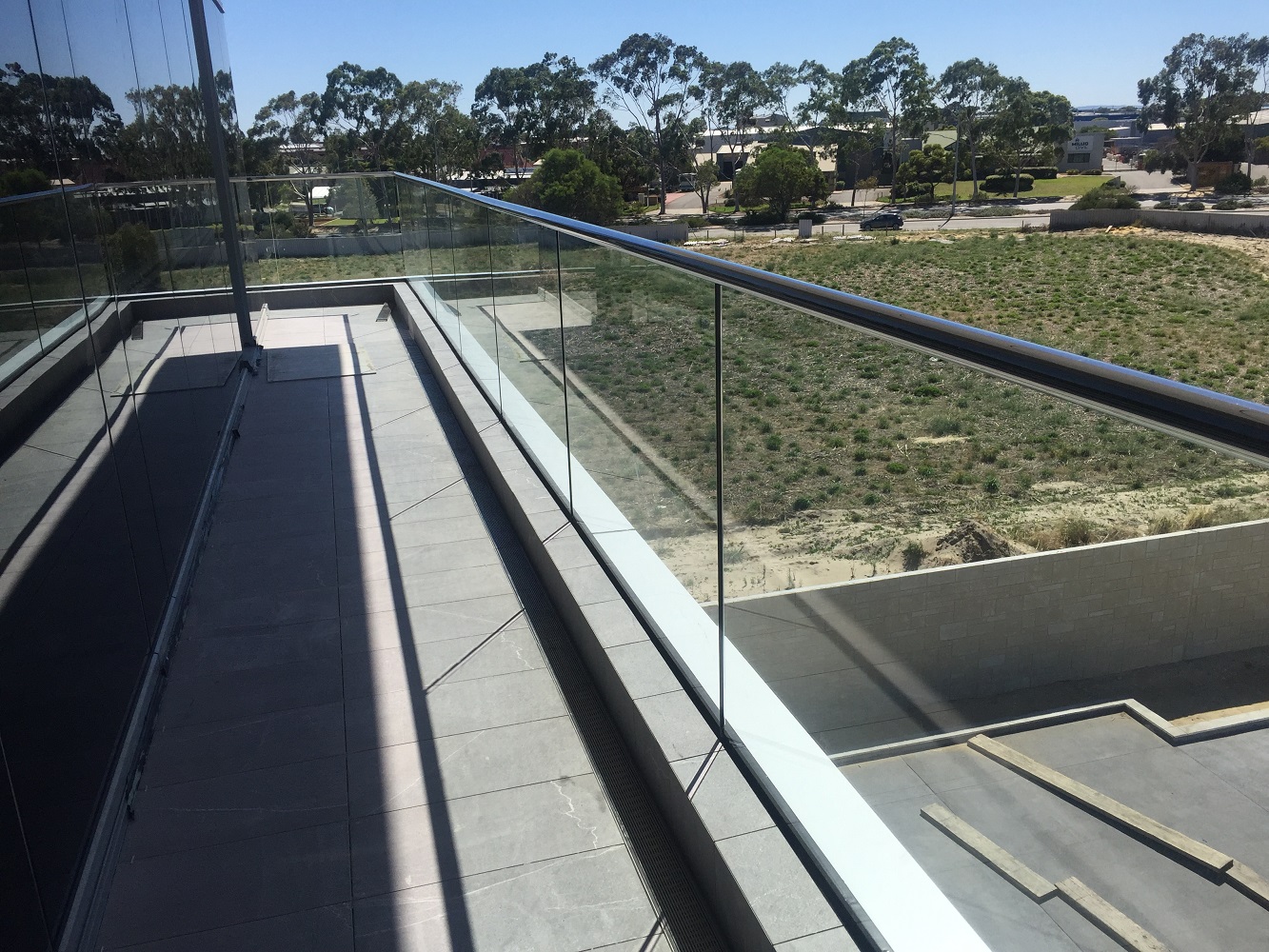

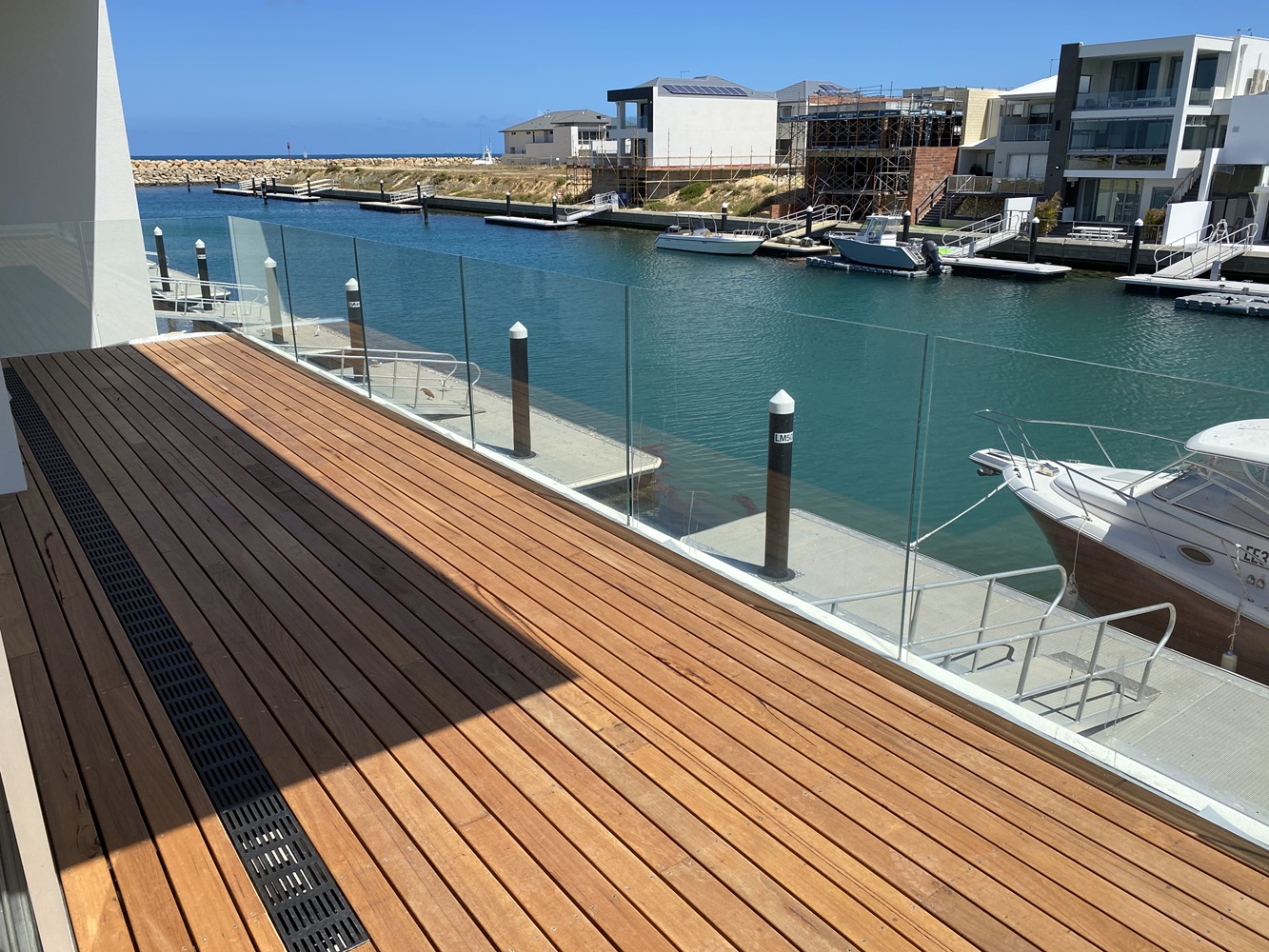

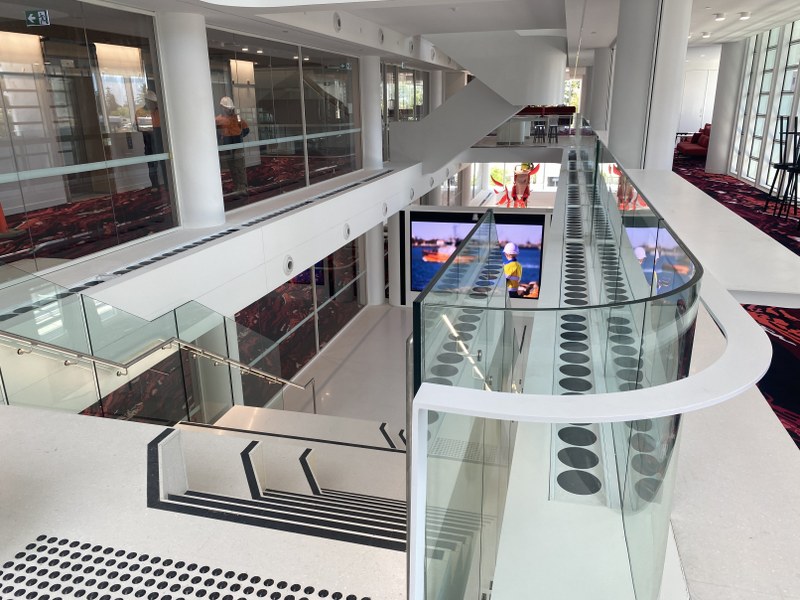

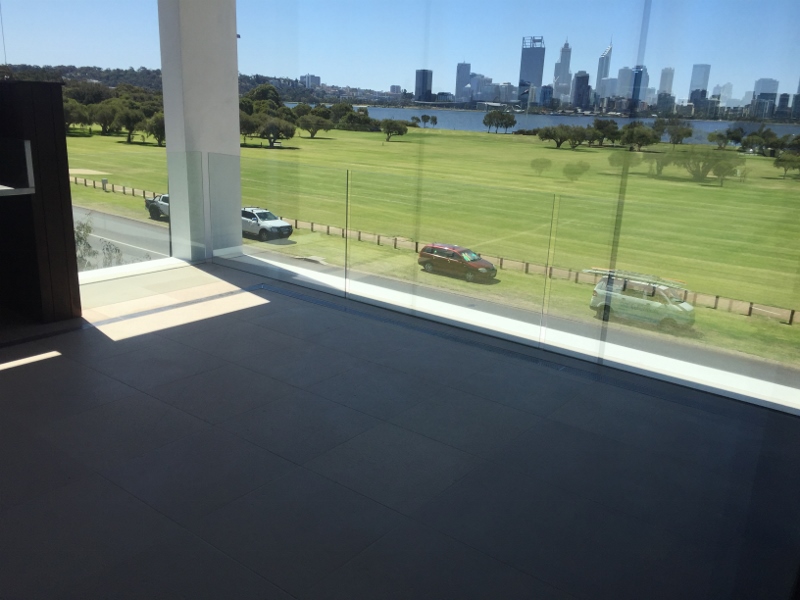

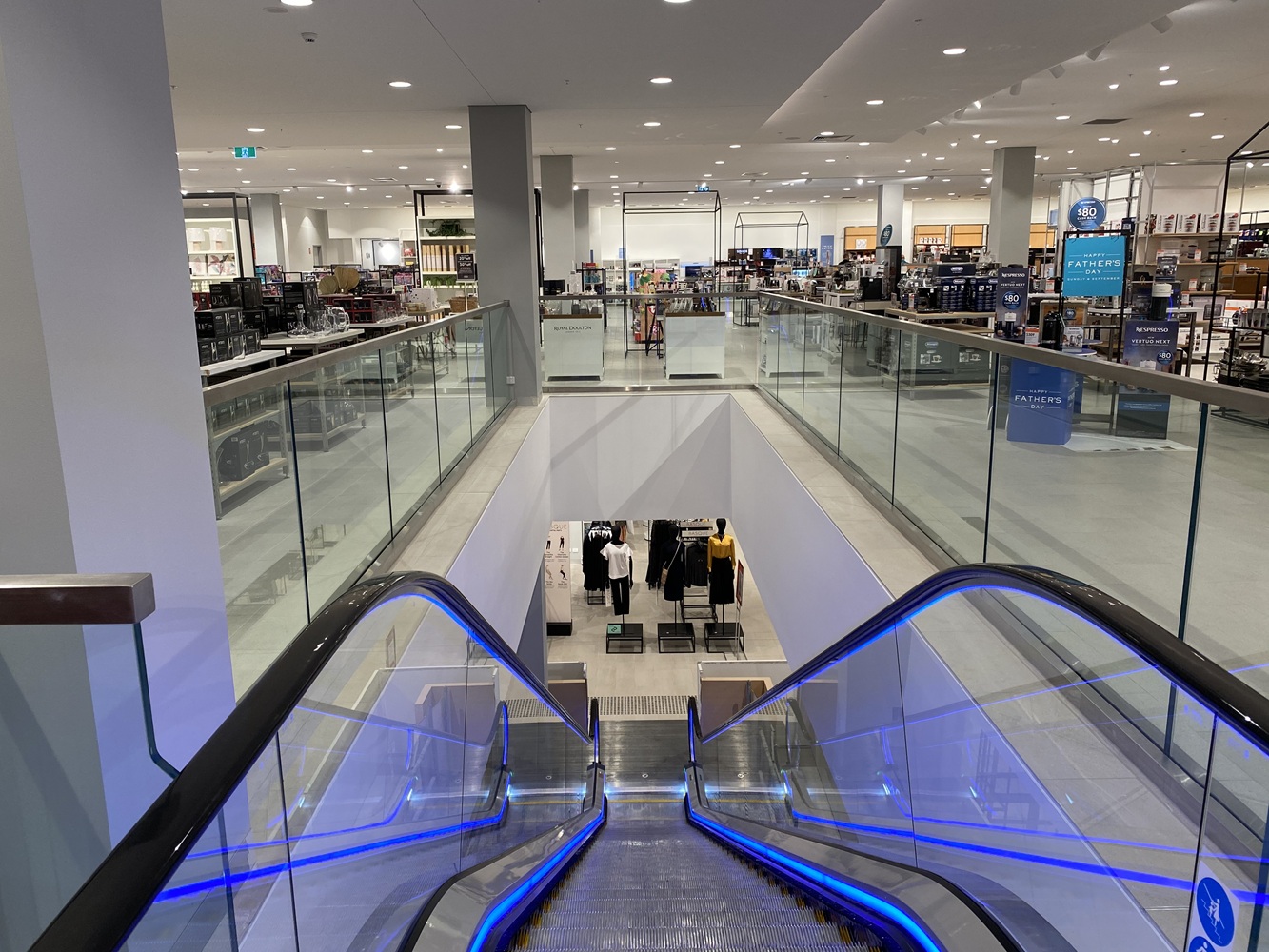

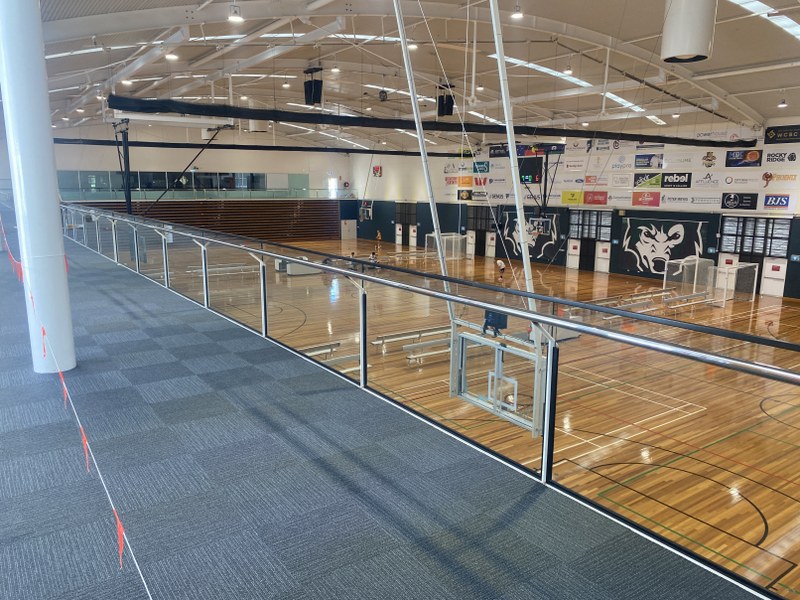

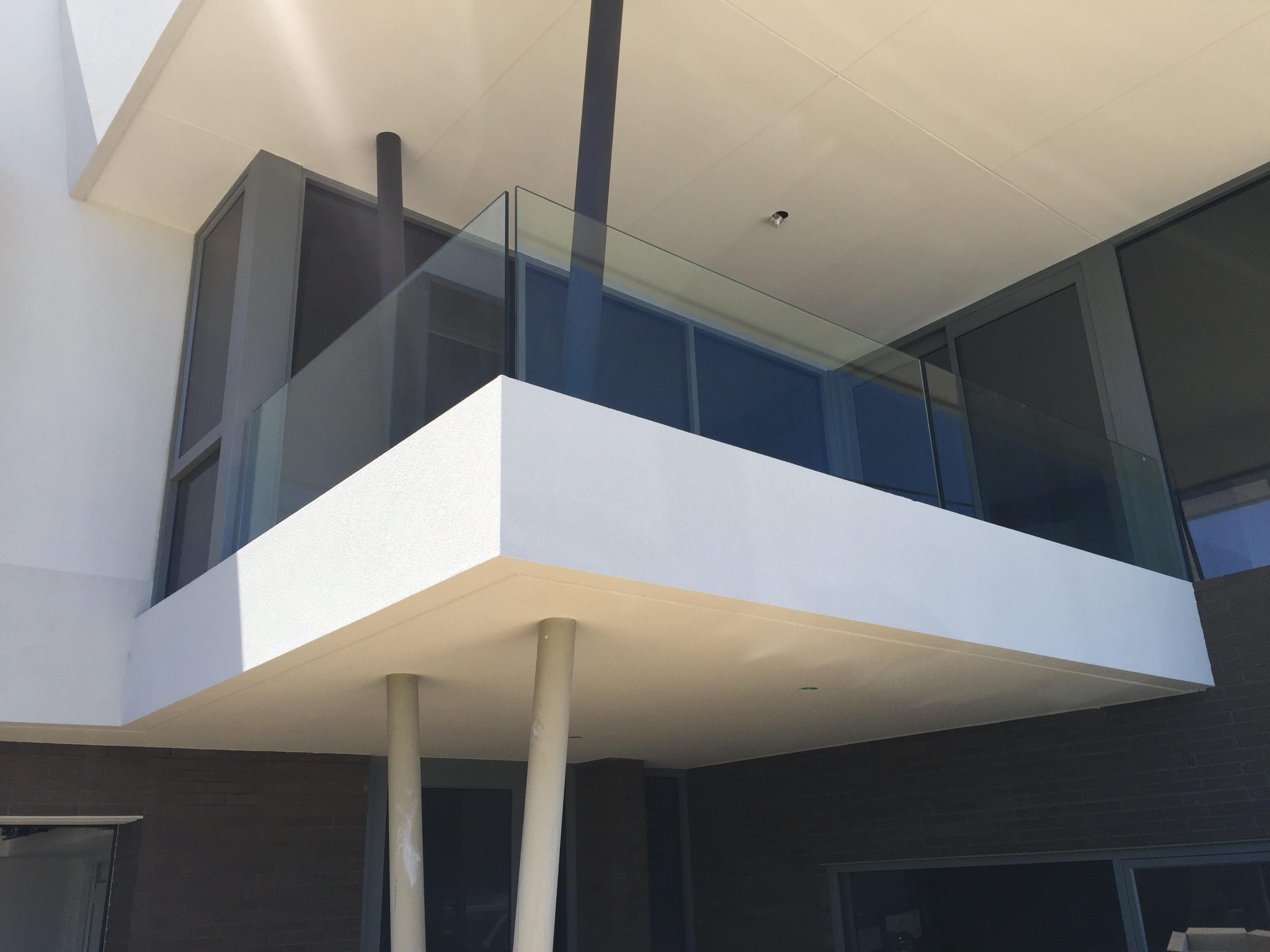

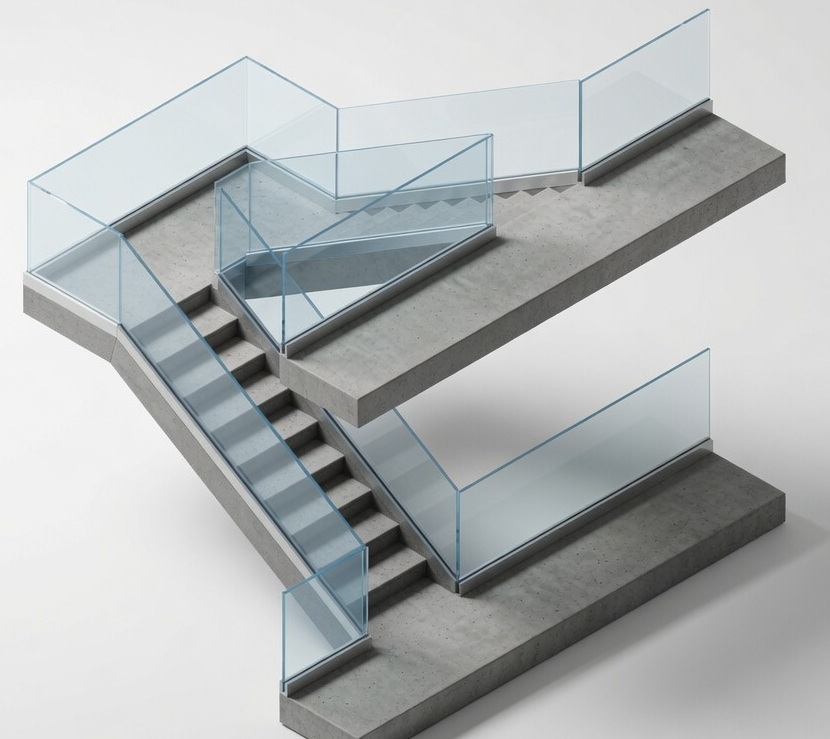

The Metforce Channel system uses a powder-coated aluminium base shoe to hold glass panels at floor level, delivering a true frameless glass balustrade appearance. An optional stainless steel handrail can be added for applications that require it. Glass specifications range from 12mm toughened up to 25.52mm laminate, and the base shoe can be surface-mounted or recessed into concrete. Rated from C3 to C5, the Metforce Channel is ideal for balconies, mezzanines, and commercial lobbies where uninterrupted glass is the design intent.

Specifications

Height
Usually 1050
Finishes
Powder Coated
Posts
N/A
Handrail options

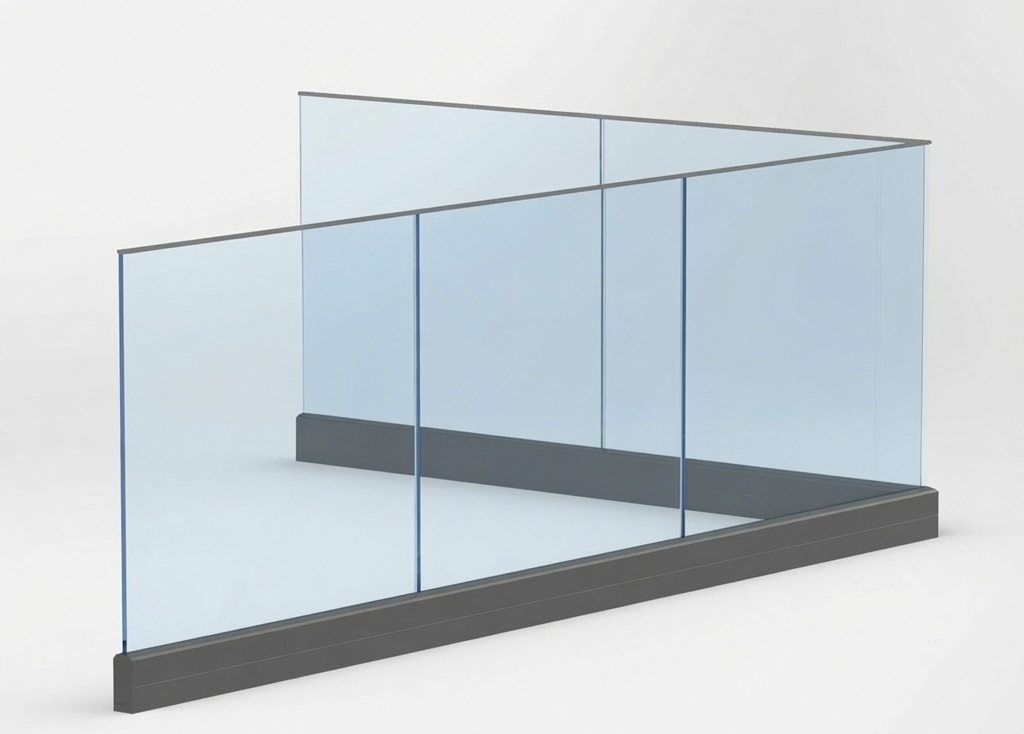

Top mounted or Side mounted Round or Rectangle (or no handrail)
Glass or balusters
12mm toughened up to 25.52mm laminate
Bases

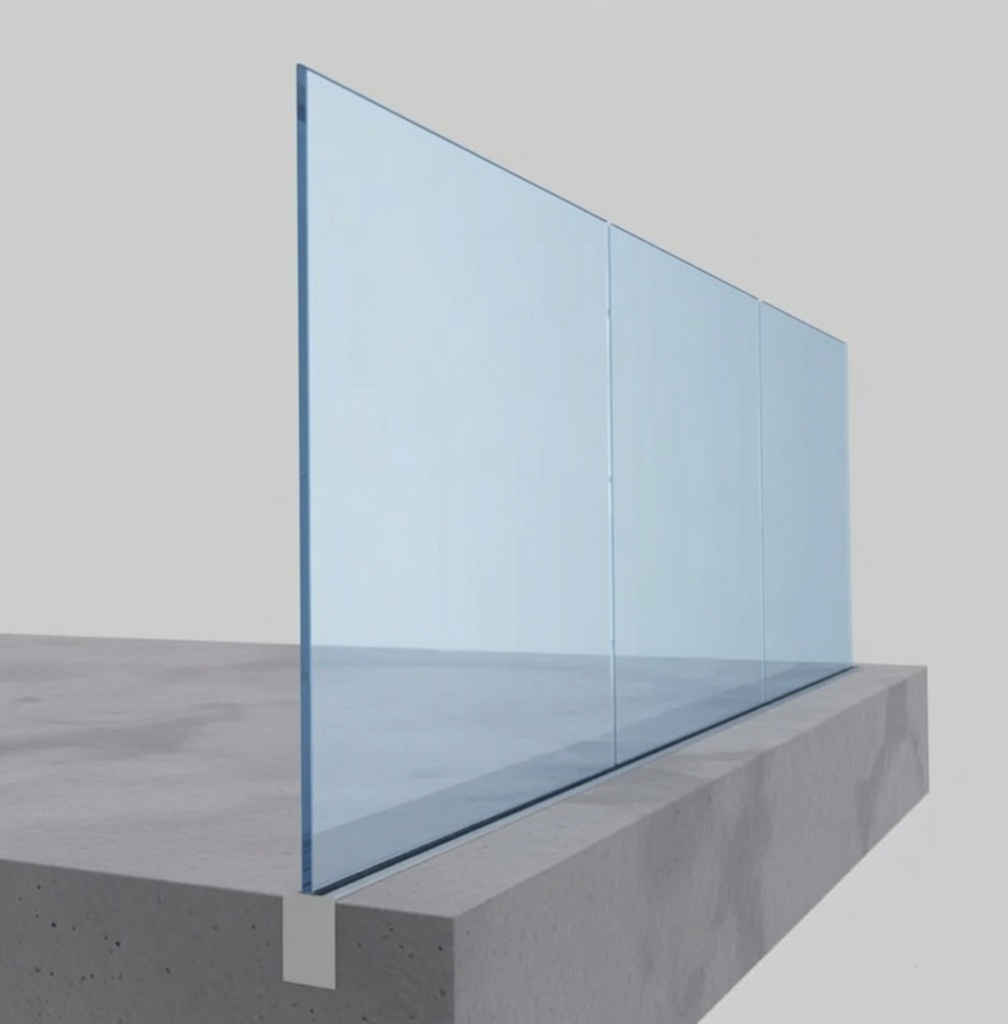

Aluminium base shoe channel (or concrete recess)
Fixing method
Usually Chemset / Grout
Construction
Modular
Load rating
C3 to C5

Configurations available

Level

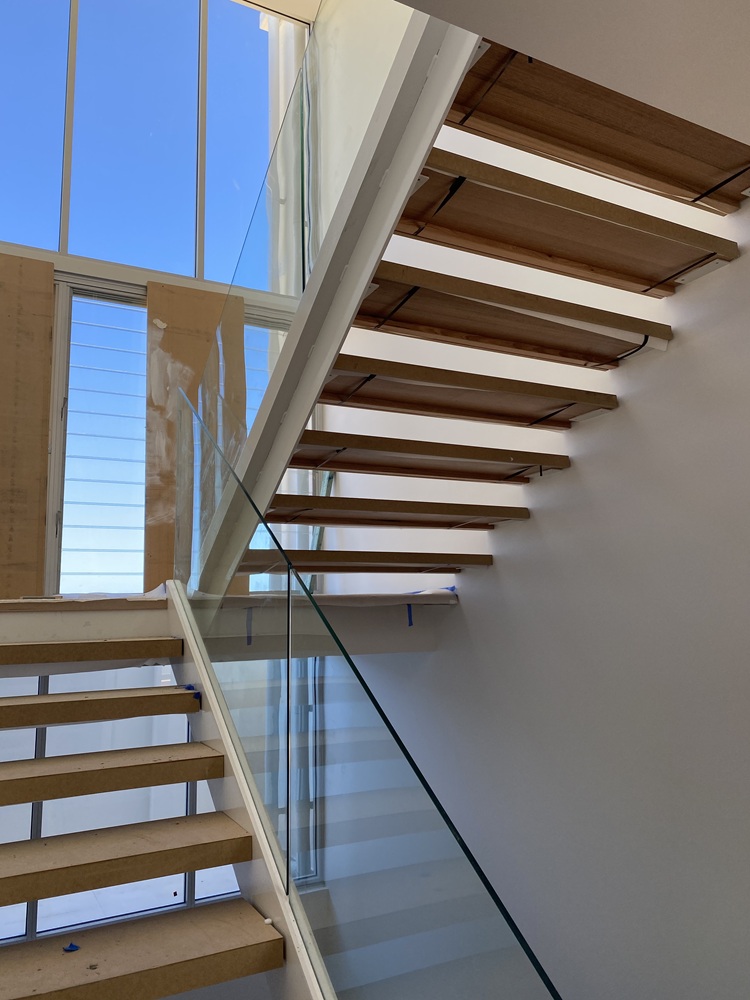

Raking

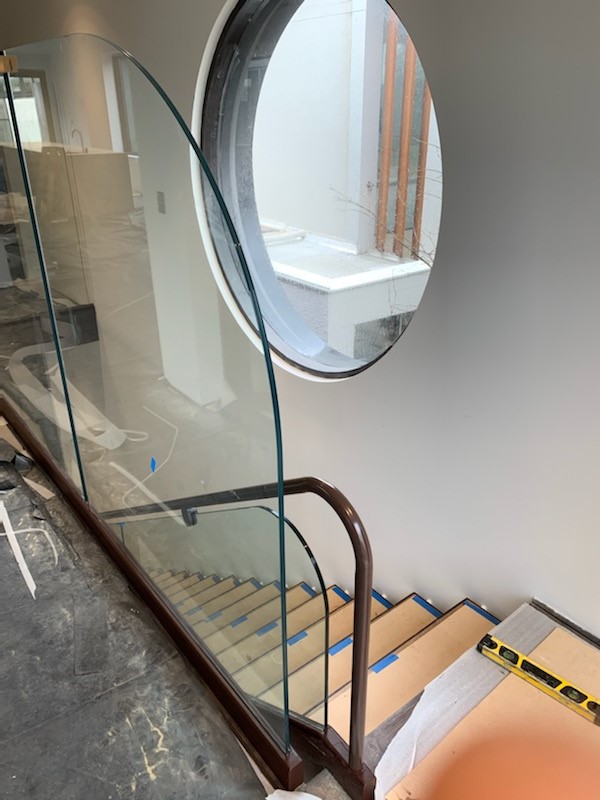

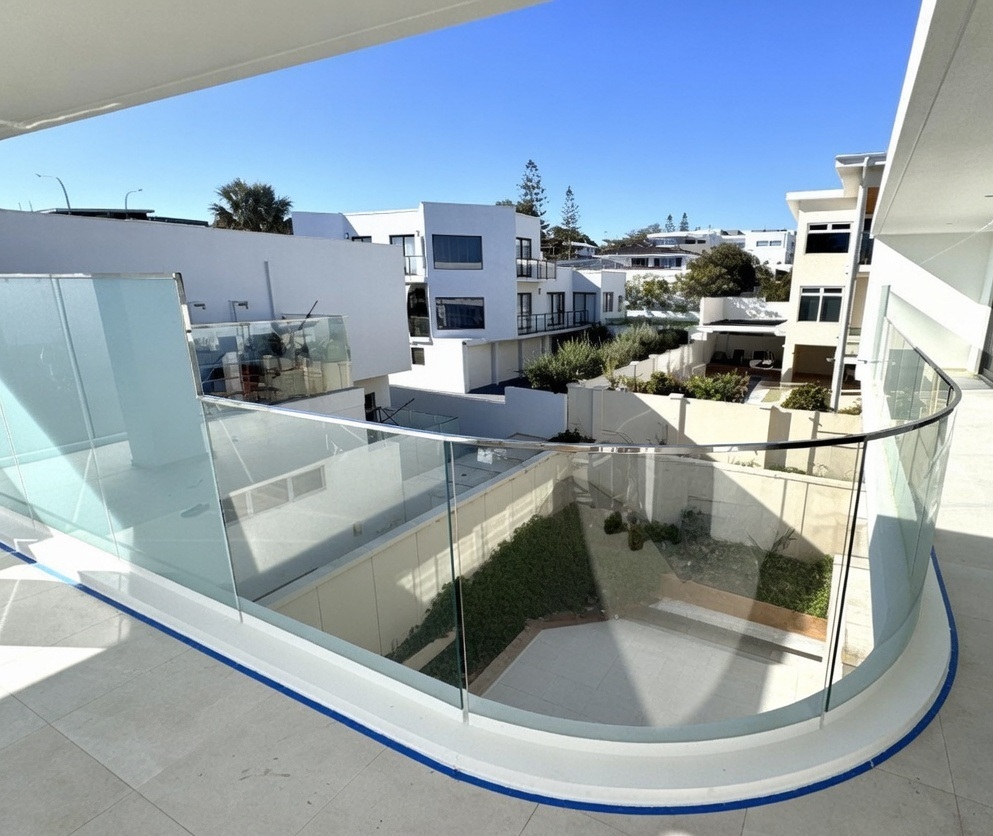

Curved
Top fixed
Side fixed
