Metforce Planar stainless steel glass balustrade with side mounted standoff fixings, Perth

C3 to C5

Metforce Planar

Stainless steel side mounted planar fixings / standoffs, glass with (or without) handrail

Balustrade, Stairs & Voids

Need this for your project?

The Metforce Planar system uses side-mounted stainless steel standoff fixings to hold glass panels, creating a clean, minimalist glass balustrade with visible point fixings as a design feature. Available with 38mm or 50mm diameter round planar fittings and optional handrail in round or rectangle profiles. Glass panels range from 12mm toughened to 21.52mm laminate. The Metforce Planar offers flexibility for flat, curved, and raking applications where an architectural, high-end finish is required.

Specifications

Height
Usually 1050
Finishes
Brushed, Polished, Powder Coated
Posts
N/A
Handrail options
Top mounted or Side mounted Round or Rectangle (or no handrail)
Glass or balusters
12mm toughened up to 21.52mm laminate (Flat, curved or raking)
Bases
Round 38mm or 50mm dia
Fixing method
Usually Chemset
Construction
Modular
Load rating
C3 to C5

Configurations available

Level
Raking
Curved
Top fixed
Side fixed

You might also like

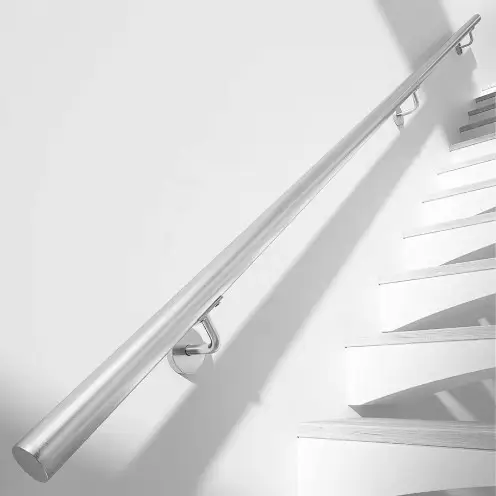

Metforce stainless steel wall mounted handrail with round profile and wall brackets, brushed finish, Perth

Metforce Wall Handrails – Stainless Steel

Stainless steel wall mounted handrails

Metforce Malka Vertical stainless steel vertical wire rope balustrade, full height installation, Perth

Metforce Malka Vertical

Vertical wire rope balustrade

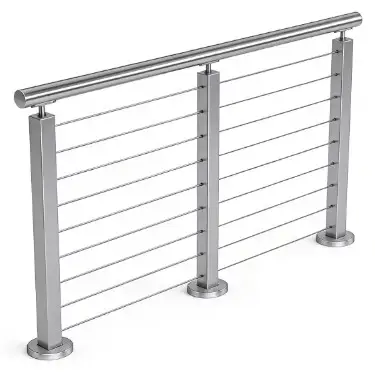

Metforce Malka Stainless grade 316 stainless steel and wire rope balustrade, brushed finish, Perth
